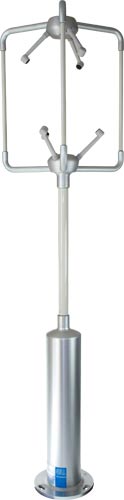

The R3 research range of wind anemometers has been designed with researchers in mind who need to determine fluxes using the eddy covariance technique. The range provides U, V, W and SOS (sonic temperature) outputs, which may be logged using the free Gill WindCom software. The R3-50 may be supplied with accessories that include cables, power supplies and sensor input units (analogue inputs).
Also available in this range:
- R3-50 (50Hz output)
- R3A-100 (100Hz output, Asymetric head)
-
Features
-
Specifications
-
Documentation
-
Anemometer Range
-
3-axis anemometer providing wind speed and direction data
-
0-45m/s wind speed
-
0-359º wind direction range (no dead band)
-
100Hz output
-
Ideal for Eddy Covariance Analysis
-
Free data logging software
-
U, V, and W vector outputs
-
Speed of sound and sonic temperature outputs
-
Robust aluminium/carbon-fibre casing
|
| Ultrasonic Output Rate |
100 Hz |
| Wind Speed |
0-45 m/s |
| Wind Direction Range |
0-359º (no dead band) |
| Operating Temperature |
-40ºC to +60ºC |
| Moisture Protection |
IP65 |
| External Construction |
Aluminium & Carbon-fibre |
| Digital Outputs |
RS422 / RS232 |
| NMEA Output |
N/A |
| Analogue Outputs |
7 (via PCIA) |
| Analogue Output Resolution |
14 bit |
| Analogue Inputs |
6 (via optional SIU) |
| Analogue Input Resolution |
14 bit (via optional SIU) |
| PRT Input |
14 bit |
| Speed of Sound Output |
Yes |
| Sonic Temperature Output |
Yes |
| Inclinometer |
Optional |
| Head Symmetry |
Symmetrical |
| Calibration |
Custom |
| Transit Case |
Yes |
