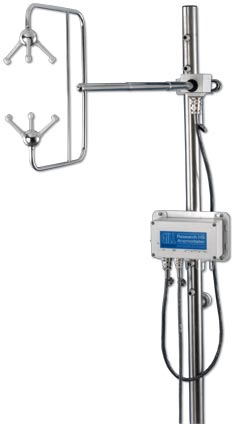

Gill HS-50 Research Anemometer

The Solent HS research range of wind meters has been designed with researchers in mind who need to determine fluxes using the eddy covariance technique.

The range provides U, V, W and SOS (sonic temperature) outputs, which may be logged using the free Gill WindCom software.

All HS Wind Meters are served with common electronics and software and may be supplied with accessories that include cables, power supplies and sensor input units (analogue inputs).

Features
Specifications
Documentation
Anemometer Range

3-axis horizontal-mount anemometer
0-45m/s wind speed
0-359º wind direction range (no dead band)
50Hz output
Ideal for Eddy Covariance Analysis
Horizontal mount reduces air-flow interruption from anemometer geometry
Highly accurate vertical and directional flow data
Free data logging software
U, V, and W vector outputs
Speed of sound and sonic temperature outputs
Robust stainless-steel casing

Ultrasonic Output Rate	50 Hz
Wind Speed	0-45 m/s
Wind Direction Range	0-359º (no dead band)
Operating Temperature	-40ºC to +60ºC
Moisture Protection	IP65
External Construction	Stainless-steel
Digital Outputs	RS422 (RS232 optional)
NMEA Output	N/A
Analogue Outputs	7 (via optional PCIA)
Analogue Output Resolution	14 bit
Analogue Inputs	6
Analogue Input Resolution	Yes
PRT Input	14 bit
Speed of Sound Output	Yes
Sonic Temperature Output	Yes
Inclinometer	Yes
Head Symmetry	Horizontal
Calibration	Custom
Transit Case	Yes
