Voltage Probe Selection Guide
Voltage Probes
Once you have selected a meter, you will need to choose which voltage and current probes would be right for the job. Our voltage probe selection can range from 1 volt, to up to 15,000 volts.
Click here to jump to Current Probes

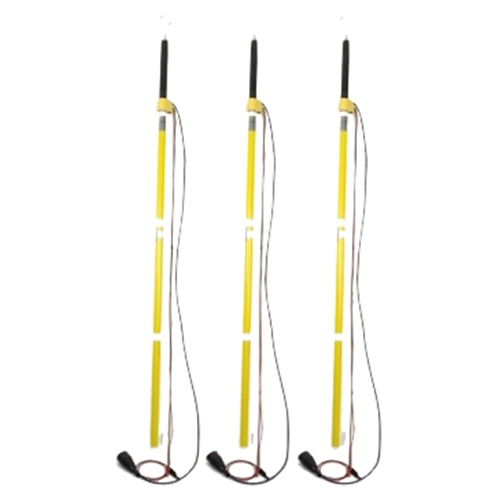

 15KVPSet15 KVP Voltage Probes (3 Probes, 9 Hot Sticks, Case)The PowerSight 15KVPSet allow you to connect directly to and safely monitor up to 15kV. It is a set of three probes, each with 6 foot hot sticks. Great for monitoring distribution voltages. Your only choice when there are no PTs (Potential Transformers) available or you want to bypass PTs.
|

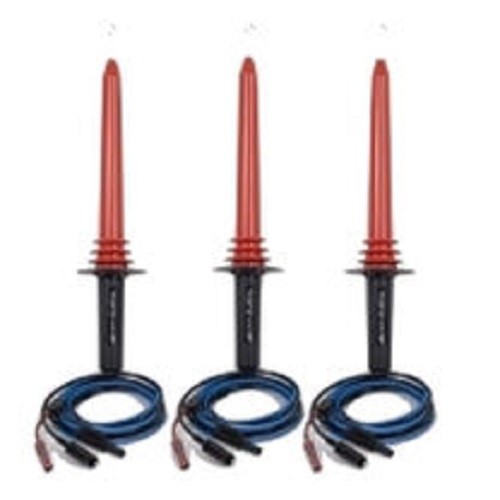

 5KVPSet5 KVP Voltage Probes (3 Probes, Case)The PowerSight 5KVPSet allows you to safely directly monitor medium voltages up to 5KV. It is a set of three probes. Great for use with 4160V motors. Your only choice when there are no PTs (Potential Transformers) available or you want to bypass PTs.
|

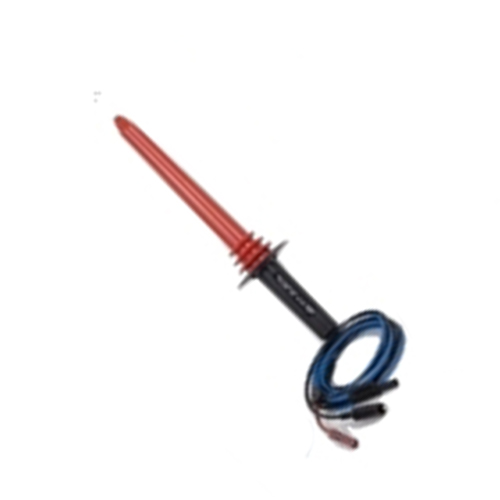

 5KVP5 KVP Voltage Probe (Single)The PowerSight 5KVPSet allows you to safely directly monitoring medium voltages up to 5KV. It is a set of three probes. Great for use with 4160V motors.
|

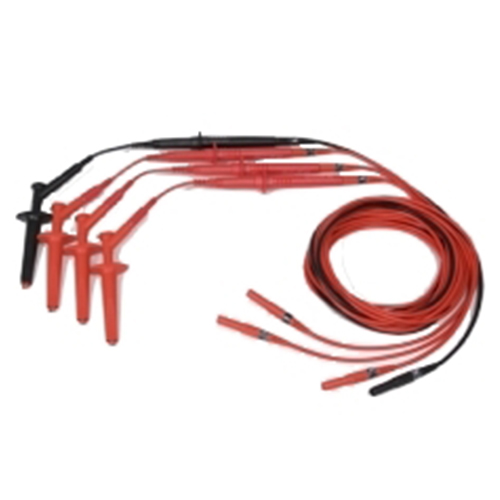

 DFVDeluxe Fused Voltage LeadsPowerSight DFV is a set of voltage leads that have in-line fuses. For added safety if a voltage lead shorts to ground via a cut in the insulation. Suitable for use to 1000V, includes replaceable fuses.
|
 DXVDeluxe Voltage LeadsPowerSight voltage lead set. This is a replacement set for the 4 voltage leads that are included with each of our meters. .
|
 VJCLIPJumbo Voltage Alligator Clips (Set of 4)Get a Good Grip on Your Voltage Connections with our Jumbo Clip! When making voltage connections you need to get a substantial hold onto lugs, bolts, and conductors with a probe that just won't let go.
|
STKSHot Stick SectionsFiberglass hotsticks for use with the 15KVP medium voltage probe. One set of STKS consists of 3 fiberglass sections, 18 inches long and 1-1/4 inches in diameter. Each section has industry standard male and female ends for screwing them together. .
|
