HANDS-ON CHOICE! From
setup to data logging to the final report, the PS2500 Power Logger
offers complete power and energy logging in a compact and low cost
package. The PS2500's lightweight, rubberized contoured case and
rugged construction make the PS2500 ideal for field work. PS2500
brochure
The PS2500 Power Logger has 4 current and 3 voltage channels to
measure all circuit types: single-phase, two-phase, three-phase wye
or delta, split delta, 2PT/2CT, DC, 45-66 Hz, and 360-440 Hz
applications as well as DC. It measures voltage, current, KW, KVA,
KVAR, true power factor, displacement power factor, energy in KWh,
Hz and (optionally) total harmonic distortion THD. An LCD window
displays real time values like a multimeter. Via a PC and Bluetooth
you can view real-time phasors and waveforms like an oscilloscope.
Log graphs show minimums, maximums, averages, for individual phases
and the totals.
The PS2500 comes with powerful PC software and an automatic Report
Writer. See an example of a power study report here: Report
CLEAR DISPLAY FOR
QUICK SPOT CHECKS You
can view voltage, current, true power, apparent power, and true
power factor present values in the meter window- just like a
multimeter!
SUCCESSFUL
STUDIES! Our patented SureStart feature
automatically checks for wrong connections before you begin
monitoring to ensure a successful power study every time. If there
is a mis-connection SureStart will display the error in the meter
window.
Long term logging
for up to months at a time. The
meter’s operation is backed up by rechargeable batteries and has an
option to power it directly from the voltage being monitored. Our
current probes do not require batteries, they get their power from
the PS2500. This guarantees that the PS2500 will log power as long
as you need to. Unlike other loggers it never goes into "sleep"
mode. This guarantees that you will have a true view of all of the
data when the job is done.

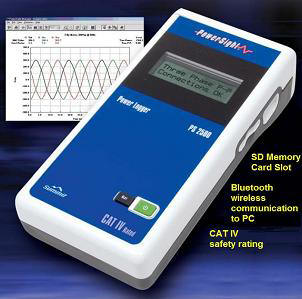

SMART! It
comes with Bluetooth technology
to download data to your PC wirelessly.
Plus a removable SD
memory card slot backs
up power survey data and provides another method of data transfer to
a PC.
SAFE FOR NFPA 70E AND CSA Z462 COMPLIANCE
The new safety regulations demand safer tools. The PowerSight PS3500
has a a CAT-IV (600V/8000V) safety rating so you can confidently use
the PS2500 on systems up to 600 VRMS. Bluetooth wireless
communications allows remote control via a PC or netbook, up to 25
feet away. Read this article: Testing
& Safety
Be Comfortable.

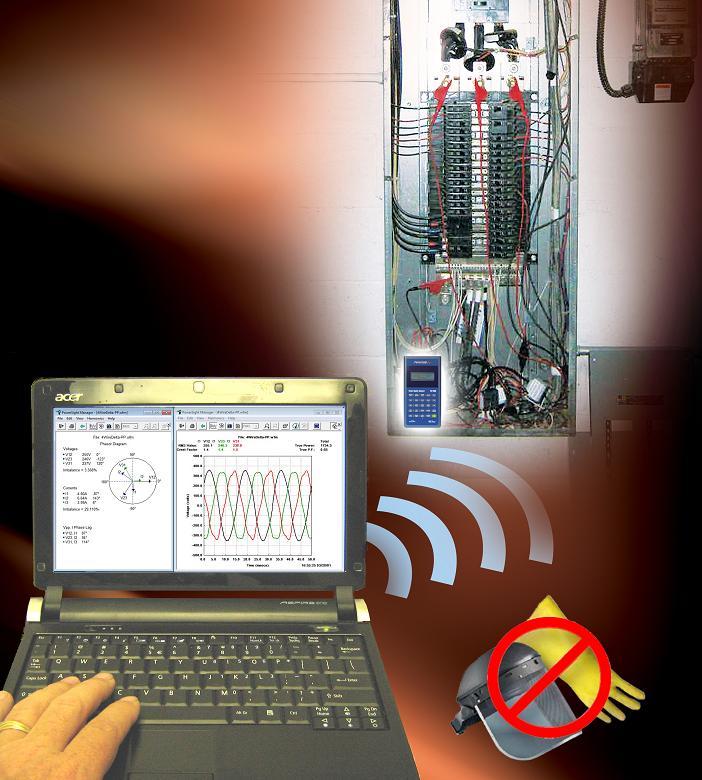

Be Safe. Get relief from wearing PPE. PowerSight
meters and analyzers with Bluetooth wireless communications are the
safest way to test. After installing the PowerSight and its probes,
workers can get away from high voltages and Arc Flash dangers and
test remotely. Once at a safe distance cumbersome PPE suits, hoods,
gloves etc. can be removed. Thus workers can more comfortably
control the PowerSight, view connections, phasors, and real-time
values, start/stop monitoring and download data in complete safety
(up to 25 feet away) via a PC, netbook. or PDA.
Do you need more than a data logger or energy analyzer for Power
Quality i.e. to catch
transient power disturbances, voltage fluctuations?
Choose the PS4500 Power Quality Analyzer for cycle-by-cycle RMS
measurements plus sags, swells, and transient events capture. PS4500
Power Quality Analyzer
