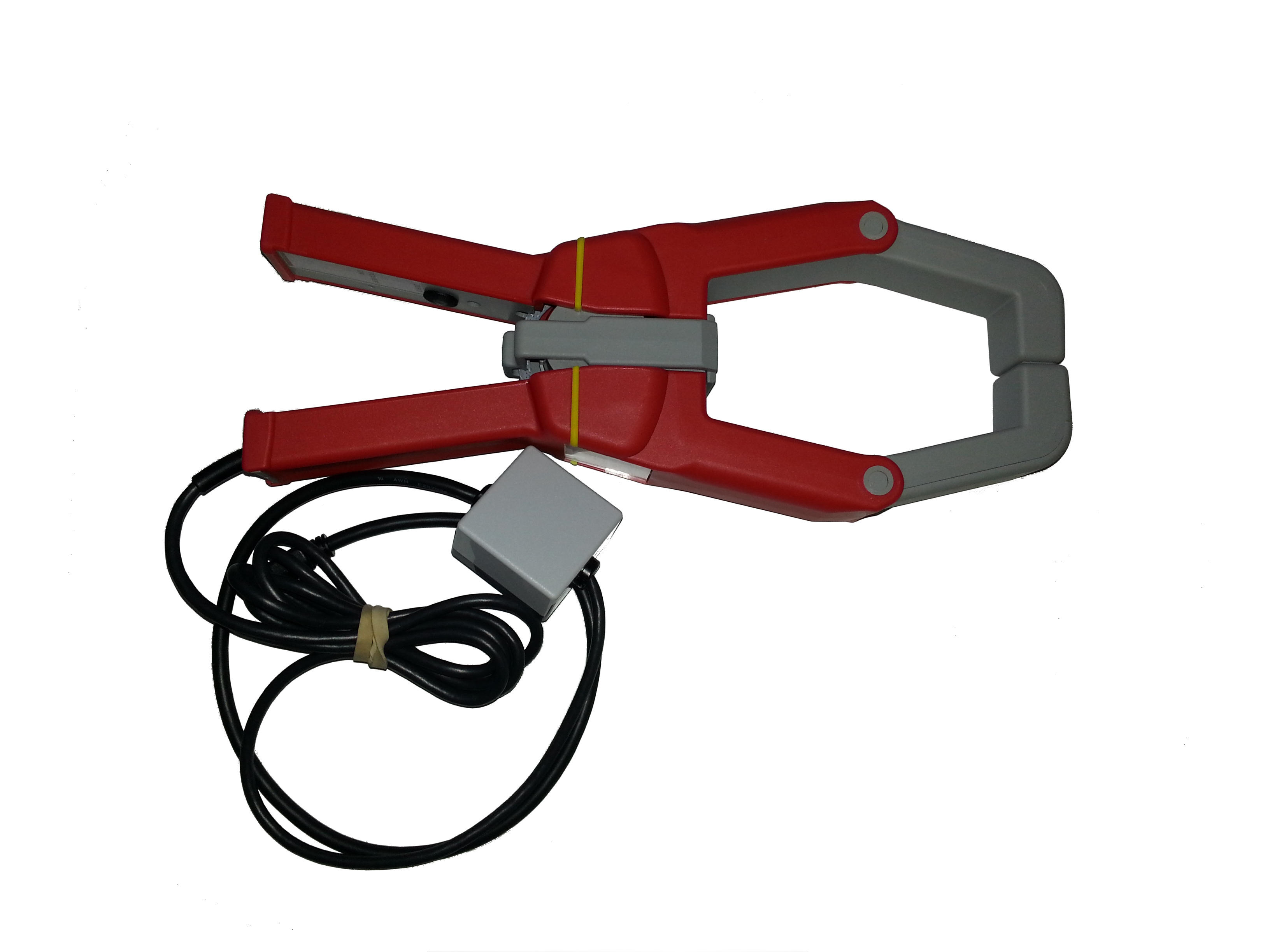

2000 Amp DC / 1500 Amp AC Current Probe

Probe for Measuring DC or AC Model No: DC2000






Summit Technology’s DC2000 Current Probe offers 2000 Amp DC current measurement as well as 1500 Amp AC current measurement.

Specifications

10 to 2000 Amps DC current measurement
10 to 1500 Amps AC Current measurement
No batteries required, power is supplied by PowerSight

+/- 1 amp +/- 3% from 10 to 1500 amps AC
+/- 1 amp +/- 3% from 10 to 2000 amps DC

Frequency Range: 22-440 Hz & DC

Dimensions

13.23 x 5.4 x 1.65 inches
The DC2000 has an inside diameter of 3.27 inches and can clamp around one 3.27” cable or two 2.27” cables.


Cable length is 2 meters (6.5 feet).
