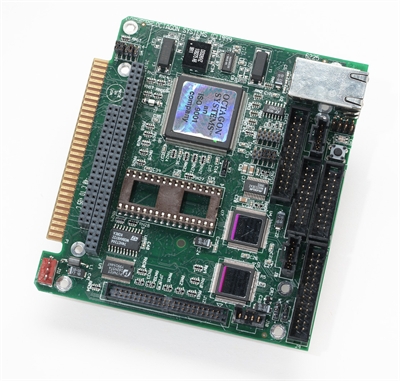

I/O-rich, industrial embedded PC

Hardware:
The 6225 is an industrial computer with the most often used I/O. It integrates serial, parallel, disk, digital and networking I/O with a low cost–per–function. The 6225 operates stand–alone with a 5V power supply, with PC/104 expansion cards, or an ISA Bus backplane. It is a compact 4.5 in. x 4.9 in.

Operating System:
Standard PC architecture supported by compatible operating systems.

Expandable:
Ethernet is 10 Base–T with device drivers; four serial ports, RS-232/422/485; parallel ports; EIDE supports two hard drives or CD–ROM drives; digital I/O.

PC/104 expansion available.

Rugged:
A true industrial card, the 6225 provides enough computing power for virtually any embedded application, while operating in extreme temperatures (–40° to 85° C operating range) and under heavy shock (40g) and vibration (5g).

The low–power requirements make it suitable for situations where battery life or heat dissipation is a concern. Ideal for sealed enclosures without the use of a fan. In addition, the on–board temperature sensor ensures the reliability of this card.

Reliable:
Ideal for distributed control, POS, ticketing machines, weighing equipment and so on where several computers are networked through Ethernet.

This rugged, single board computer will provide years of reliable service in the most challenging environments.
