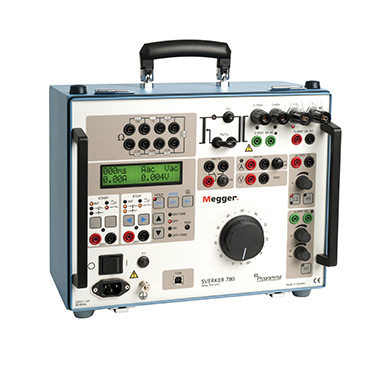

SVERKER750 and SVERKER780

Single-phase relay test sets

SVERKER750 and SVERKER780
  •   The engineer’s toolbox for all single phase relay testing!
  •   Stand-alone functionality
  •   Rugged and reliable for field use

The SVERKER750 and SVERKER780 Relay Test Set are the engineer's toolbox. The control panel features a logical layout, SVERKER 650 users will find it comfortably familiar and will be able to start work right away.

The SVERKER750 and SVERKER780 features many functions that make relay testing more efficient. For example, its powerful measurement section can display (in addition to time, voltage and current) Z, R, X, S, P, Q, phase angle and cos φ. The voltmeter can also be used as a 2nd ammeter (when testing differential relays for example). All values are presented on a single easy-to-read display.

You can also test directional protective equipment efficiantly by means of the built-in variable voltage source. In SVERKER780 this has a continuous phase shift function and adjustable frequency as well. Automatic reclosing devices can also be tested – just as easily.

Designed to comply with EU standards and other personal and operational safety standards, SVERKER750 and SVERKER780 are also equipped with a serial port for communication with personal computers and the PC software SVERKER Win.

Since the compact SVERKER weighs only 18 kg (39 lbs), it’s easy to move from site to site.

Two or more SVERKER units can also be synchronized, which allows the user to operate a basic 3-phase test set.

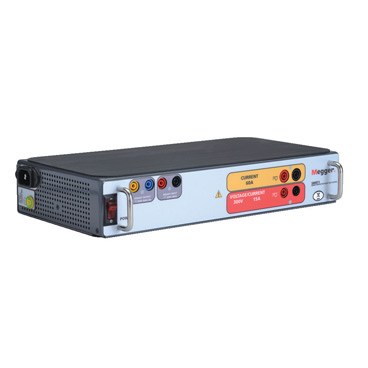

SMRT1

Single Phase Relay Test System

SMRT1SMRT1
  •   Small, rugged, lightweight and powerful
  •   Operate with or without a computer
  •   Intuitive manual operation with Smart Touch View Interface
  •   High current, high power (75 Amps/400 VA rms)
  •   Network interface provides IEC 61850 test capabilities
  •   Fully automated testing using AVTS software

As a stand-alone unit the SMRT1 has the “smart” combination of high compliance voltage and high current to test electromechanical, solid-state and microprocessor-based overcurrent relays, including voltage controlled, voltage restraint and directional overcurrent; test under/over voltage, single-phase impedance, single-phase power, directional, synchronizing, auto-synchronizing, negative sequence under/over voltage, current balance, frequency, volts/hertz, reclosing, thermal, and various other relays, see the Applications Guide for more.

The SMRT1 test system has the ability to be manually controlled with Megger‘s new Smart Touch View Interface™ (STVI). The STVI, with its large, full color, high resolution, TFT LCD touch screen allows the user to perform manual, steady-state and dynamic testing quickly and easily using the manual test screen, as well as using built-in preset test routines for most popular relays.

The STVI eliminates the need for a computer when testing virtually all types of relays. Menu screens and touch screen function buttons are provided to quickly and easily select the desired test function. Tests results can be saved to the PowerDB™ ONBOARD for download to a memory stick to transfer or print test reports. For full automatic testing the SMRT1 may be controlled by Megger Advanced Visual Test Software (AVTS). AVTS is a Microsoft® Windows® XP®/Vista™/7 compatible software program designed to manage all aspects of protective relay testing using the new Megger SMRT.

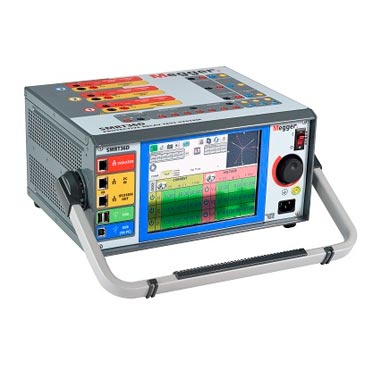

SMRT36D

Megger Smart Grid Relay Test System

SMRT36D
  •   New Integrated Smart Touch View Interface (STVI)
    - Multi-colored graphics with intuitive navigation
    - Enhanced dynamic test capabilities
    - Built-in test report generator
  •   New high current output - 60 Amps at 300 VA per phase
  •   Improved low current accuracy . currents below 100 mA
  •   New convertible voltage channels . 15 Amps at 120 VA
  •   Dynamic, Transient and GPS Satellite Synchronized End-to-End Testing Capability
  •   IEC 61850 Testing Capability

The SMRT36D is a multipurpose, light-weight, field portable test set capable of testing a wide variety of electro-mechanical, solid-state and microprocessor-based protective relays, small molded case circuit breakers, motor overload relays and similar protective devices.

The unit can be operated either manually via the built-in touchscreen user interface, or placed under full computer control via the AVTS, Advanced Visual Testing Software, or the STVI software running on a PC.

The built-in user interface, called the Smart Touch-View Interface™ (STVI), is Megger’s second generation of automatic/semi-automatic manual user interface software. It incorporates a large, easy to read Full Color high resolution, high definition, TFT LCD touch-screen display, which displays metered values such as AC and DC Amperes, AC and DC Volts, and Time in both seconds and cycles. Depending on the type of test selected, other values may be displayed, such as Phase Angle, Frequency, Ohms, Watts, VA, or Power Factor.

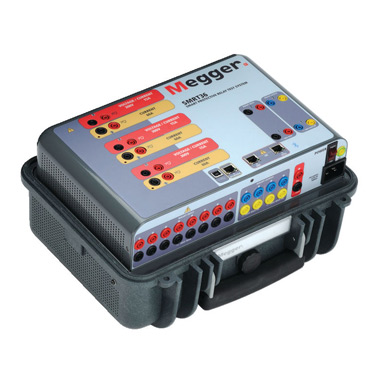

SMRT36

Megger Relay Test System

SMRT36
  •   Small, rugged, lightweight and powerful
  •   Operate with or without a computer
  •   Intuitive manual operation with Smart Touch View Interface
  •   High current, high power (60 Amps/300 VA rms) per phase
  •   Network interface provides IEC 61850 test capabilities
  •   Fully automated testing using AVTS Software

For size, weight, and features the SMRT36 is conceivably the smallest, lightest, highest output powered, complete three phase relay test system in the world today. The test system may be customized by adding the number of Voltage-Current, “VIGEN”, modules needed for specific test applications. For electric utility use, the SMRT36 with three VIGEN Modules provides complete three-phase testing of three-phase impedance, directional power, negative sequence overcurrent and other devices that require a three-phase four-wire wye connected source.

With three modules, output current and VA is tripled for high instantaneous or high burden overcurrent relays. With the voltage channels converted to currents, the same unit can provide 6-phase current. The SMRT36 VIGEN modules also provide high power in BOTH the voltage and current channels to test virtually all relays.

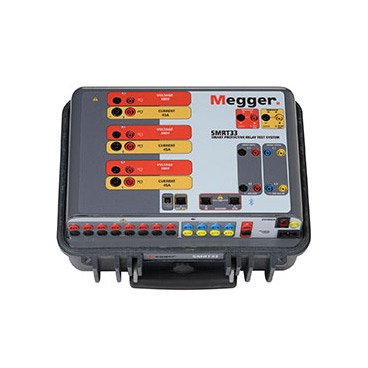

SMRT33

Megger Relay Test System

SMRT33
  •  Small, rugged, lightweight and powerful
  •  Operate with or without a computer
  •  Intuitive manual operation with Smart Touch View Interface
  •  High current, high power output - (45 Amps/300 VA rms) per phase
  •  Network interface provides IEC 61850 test capabilities
  •  Fully automated testing using AVTS software
  •  Optional transducer test capability

For size, and low weight, the SMRT33 is conceivably the smallest, lightest, highest output powered; complete three phase relay test system in the world today. The SMRT33 provides high power in BOTH the voltage and current channels to test virtually all types of protective relays used in heavy industrial, distributed generation and low to medium voltage distribution substations. The SMRT33 has the “smart” combination of high compliance voltage and high current to test all electromechanical, solid-state and microprocessor-based overcurrent relays, including high impedance directional ground overcurrent. In addition, the unit includes capability to test IEC 61850 devices.

The SMRT33 test system has the ability to be manually controlled with Megger’s new Smart Touch View Interface™ (STVI). The STVI, with its large, full color, high resolution, TFT LCD touch screen allows the user to perform manual, steady-state and dynamic testing quickly and easily using the manual test screen, as well as using built-in preset test routines for most popular relays (see STVI datasheet for details).

The STVI eliminates the need for a computer when testing virtually all types of relays. Menu screens and touch screen function buttons are provided to quickly and easily select the desired test function. Tests results can be saved to the STVI for download to a memory stick to transfer or print test reports.

For full automatic testing the SMRT33 may be controlled by Megger Advanced Visual Test Software (AVTS). AVTS is a Microsoft® Windows® XP®/Vista™/7/8 compatible software program designed to manage all aspects of protective relay testing using the new Megger SMRT33, (see AVTS datasheet for details).

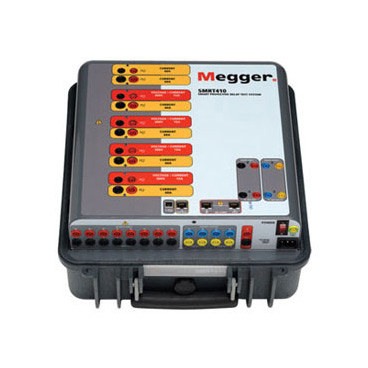

SMRT410

Megger Relay Test System

SMRT410
  •  Small, rugged, lightweight and powerful
  •  Operates with or without a computer
  •  Intuitive manual operation with Smart Touch View Interface
  •  High current, high power output (60 Amps/300 VA rms) per phase
  •  Flexible output design provides up to four-phase voltage and up to ten-phase current
  •  Network interface provides IEC 61850 test capabilities
  •  Fully automated testing using AVTS software

The SMRT410 test system may be customized by adding the number of Voltage-Current, “VIGEN”, modules needed for specific test applications. The SMRT410 has the “smart” combination of high compliance voltage and high current to test all electromechanical, solid-state and microprocessor-based overcurrent relays, including voltage controlled, voltage restraint and high impedance directional ground overcurrent.

The SMRT410 provides a complete multi-phase test system for commissioning of protection systems. With up to 4 voltage channels a 6 high currents, the SMRT410 meets every testing need. The SMRT410 VIGEN modules also provide high power in BOTH the voltage and current channels to test virtually all types of protective relays.

The SMRT410 test system has the ability to be manually controlled with Megger’s new Smart Touch View Interface™ (STVI). The STVI, with its large, full color, high resolution, TFT LCD touch screen allows the user to perform manual, steady-state and dynamic testing quickly and easily using the manual test screen, as well as using built-in preset test routines for most popular relays.

The STVI eliminates the need for a computer when testing virtually all types of relays. Menu screens and touch screen function buttons are provided to quickly and easily select the desired test function. Tests results can be saved to the STVI for download to a memory stick to transfer or print test reports.

For full automatic testing the SMRT410 may be controlled by Megger Advanced Visual Test Software (AVTS). AVTS is a Microsoft Windows® XP®/Vista™/7 compatible software program designed to manage all aspects of protective relay testing using the new Megger SMRT.

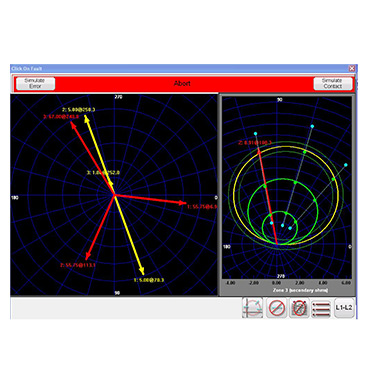

STVI

Smart Touch View Interface Handheld Controller for SMRT and MPRT

  • STVISTVI
    •   Large High Resolution Color TFT LCD touch-screen intuitive smart navigation makes testing relays easier
    •   Designed for either right or left handed operation with control knob centrally located
    •   Automatic Ramp, Pulse Ramp, Binary Search and Pulse Ramp Binary Search Capability for pick up and dropout tests
    •   Overcurrent Relay Test includes IEC, IEEE and hundreds of Specific Relay Time-Curves Built-in
    •   Dynamic Testing Capability, Multi-Shot Trip and Reclose “Sequencing” test screen
    •   Save/View/Print results from internal PowerDB OnBoard
    •   Download results via USB to print

    The Smart Touch View Interface™ (STVI) is Megger’s second generation of handheld controllers for the new SMRT and older MPRT1 relay test systems. The STVI, with its large, full color, new high resolution, and high definition TFT LCD touch screen allows the user to perform manual, steady-state and dynamic testing quickly and easily using the Manual or Sequencer test screens, as well as using built-in preset test routines for most popular relays.

    Ergonomically designed for either right or left hand operation, rubber cushion grips, centrally located control knob, and a touch screen, the STVI is extremely easy to use. Use the new built-in stand for single-handed operation. The STVI uses a standard Ethernet cable, and Power Over Ethernet (POE) operation. The STVI includes non-volatile built-in data storage for saving tests and test results. A USB port is provided for transferring test results to your PC.
